Production process: hot fusion welding
Material:
PP:polypropylene needle felt
PE:Polyester Needled FeltProduct Description:
Full hot melt filter bag adopts three-dimensional three-dimensional deep structure and heat-soluble seamless combination technology to ensure filtration efficiency and no leakage: suitable for low and medium viscosity liquid filtration environment, with stable higher filtration flow rate, can effectively intercept a variety of soft and hard impurities.Product Features
-Different sealing ring mouths are available, suitable for various filters
-All hot melt process to ensure no side leakage
-The material does not contain silicone and other additives to avoid chemical leaching
-Special heat treatment process on the surface of the filter material to eliminate fiber shedding
-Food grade filtration requirements can be met

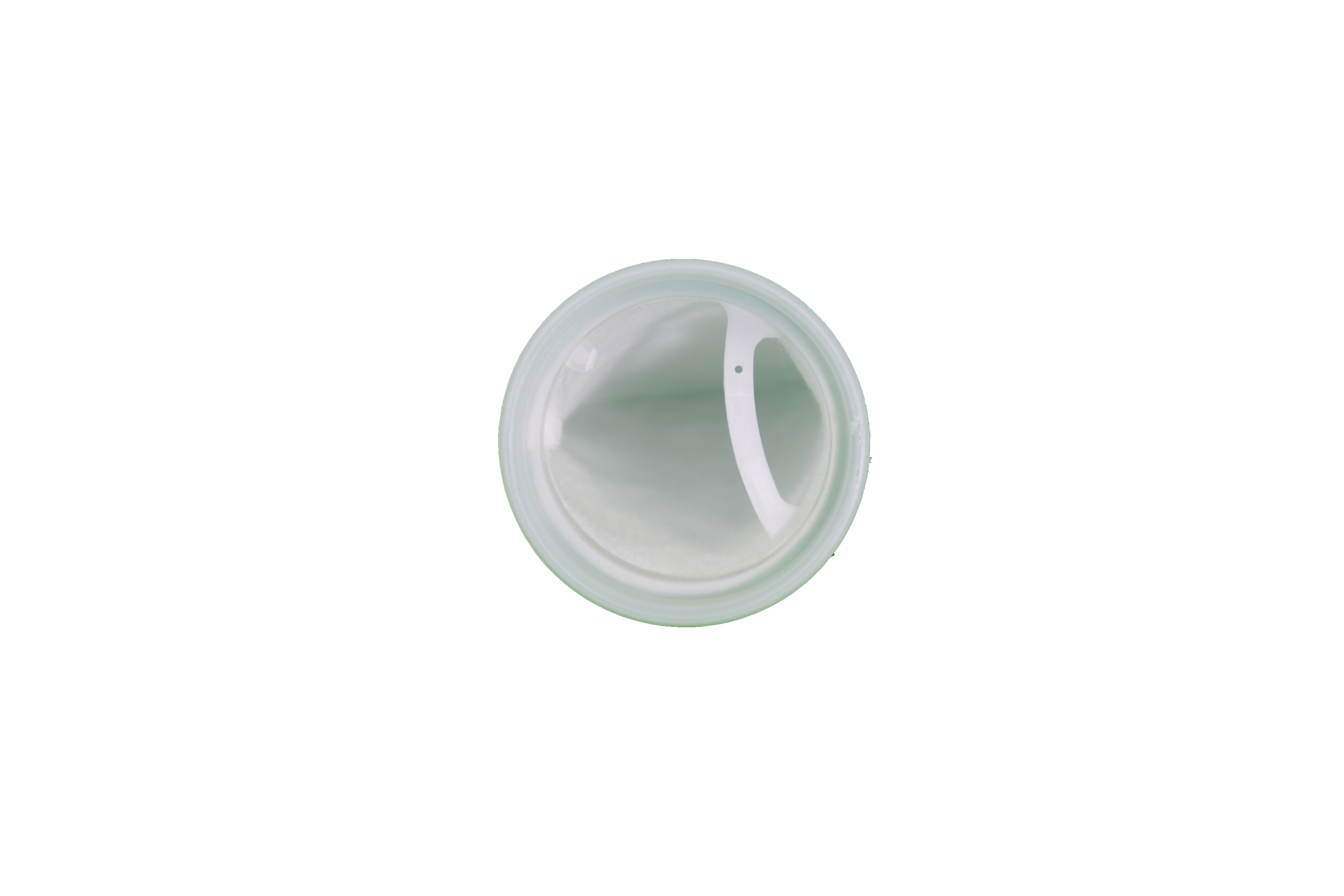

FW-HMF083
Available sizes
01: Φ7×17 inch
02: Φ7×32 inches
03: Φ4×9 inches
04: Φ4×15 inches
05: Φ6×20 inchesSelectable accuracy (μm)
1、5、10、25、50、75、100、150、200、250、300Technical parameters
Maximum differential pressure: 2.5bar
Recommended replacement differential pressure: ≈0.8 to 1.5 bar
Maximum operating temperature
Polypropylene: < 90 °C
Polyester: < 140 °C
Recommended flow rate:
01:20 m3/h
02:40 m3/h
03: 6 m3/h
04: 12 m3/h
05:20 m3/hApplication industry
Automotive painting systems / Electrophoresis paint, electroplating fluid filtration / Lubricants, hydraulic oil / Chemicals / Inks / Edible oils, juices / Water
